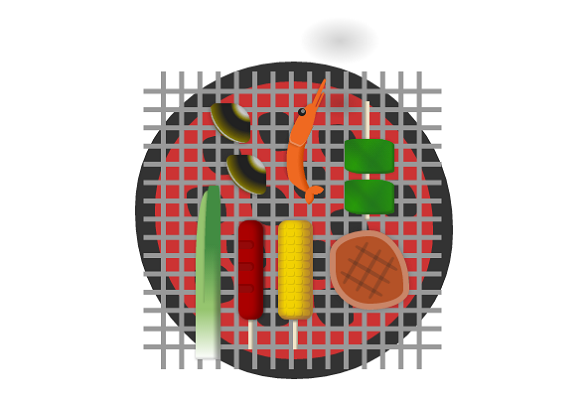

今天柏平给大家分享一款非常有创意的CSS3动画，这款动画模拟了一个烧烤架，烧烤架上的食物也都是用纯CSS3绘制而成，没有用一张图片，效果相当逼真。另外一个有意思的是，这个CSS3烧烤架还会冒烟，模拟了烧烤时的情景。
接下来简单分析一下实现的代码，代码主要由HTML和CSS组成。
HTML代码：
<div class="BBQ"> <div class="meat"></div> <div class="sausage"></div> <div class="corn"></div> <div class="waterbamboo"></div> <div class="shrimp"></div> <div class="clams"></div> <div class="greenpepper"></div> <div class="smoke"></div> </div>
HTML代码很简单，几个div就将整个烧烤架布局完了，当然重点还是CSS代码。
CSS代码：
这里先贴一下烧烤架的CSS代码，主要是实现一张网：
.BBQ {
border-radius:50%/20% 70%;
box-shadow:40px 48px 0 #333,-32px -49.6px 0 #333,-40px 25.6px 0 #333,28.8px -36.8px 0 #333,8px 80px #333,-64px 72px #333,88px 19.2px #333,-104px 25.6px #333,-88px -25.6px #333,-96px 104px #333,-40px 128px #333,24px 128px #333,80px 96px #333,-16px 40px 0 120px #C33,-16px 40px 0 140px #333;
position:relative;
width:40px;
height:40px;
margin:220px auto;
background:#333;
}
.BBQ:before,.BBQ:after {
box-shadow:18.4px 0 0 #999,36.8px 0 0 #999,55.2px 0 0 #999,73.6px 0 0 #999,92px 0 0 #999,110.4px 0 0 #999,128.8px 0 0 #999,147.2px 0 0 #999,165.6px 0 0 #999,184px 0 0 #999,202.4px 0 0 #999,220.8px 0 0 #999,239.2px 0 0 #999,257.6px 0 0 #999;
display:block;
position:absolute;
top:-90px;
left:-130px;
width:5px;
height:300px;
background:#999;
}
.BBQ:after {
-ms-transform:rotate(90deg);
-webkit-transform:rotate(90deg);
transform:rotate(90deg);
top:-220px;
left:0;
}然后我们对其中一种食物进行绘制，比如说绘制一个玉米：
.BBQ .corn {
border-radius:9px;
box-shadow:4px -2px 4px rgba(99,33,99,0.3) inset,-10px -2px 10px rgba(99,33,99,0.5) inset,0 0 5px rgba(33,33,33,0.3);
position:absolute;
top:60px;
left:-12px;
width:35px;
height:100px;
background:#F2D204;
z-index:1;
}
.BBQ .corn:before {
box-shadow:-1px 2px 2px 0 rgba(33,33,33,0.5) inset;
position:relative;
top:100%;
display:block;
margin:0 auto;
width:5px;
height:30px;
background:#F2E6CA;
}
.BBQ .corn:after {
border-radius:2px;
filter:progid:DXImageTransform.Microsoft.Alpha(Opacity=20);
opacity:0.2;
box-shadow:1px 1px 0 rgba(33,33,33,0.3),8px 0 0 #F2D204,9px 1px 0 rgba(33,33,33,0.5),16px 0 0 #F2D204,17px 1px 0 rgba(33,33,33,0.5),24px 0 0 #F2D204,25px 1px 0 rgba(33,33,33,0.2),0 8px 0 #F2D204,1px 9px 0 rgba(33,33,33,0.3),8px 8px 0 #F2D204,9px 9px 0 rgba(33,33,33,0.5),16px 8px 0 #F2D204,17px 9px 0 rgba(33,33,33,0.5),24px 8px 0 #F2D204,25px 9px 0 rgba(33,33,33,0.2),0 16px 0 #F2D204,1px 17px 0 rgba(33,33,33,0.3),8px 16px 0 #F2D204,9px 17px 0 rgba(33,33,33,0.5),16px 16px 0 #F2D204,17px 17px 0 rgba(33,33,33,0.5),24px 16px 0 #F2D204,25px 17px 0 rgba(33,33,33,0.2),0 24px 0 #F2D204,1px 25px 0 rgba(33,33,33,0.3),8px 24px 0 #F2D204,9px 25px 0 rgba(33,33,33,0.5),16px 24px 0 #F2D204,17px 25px 0 rgba(33,33,33,0.5),24px 24px 0 #F2D204,25px 25px 0 rgba(33,33,33,0.2),0 32px 0 #F2D204,1px 33px 0 rgba(33,33,33,0.3),8px 32px 0 #F2D204,9px 33px 0 rgba(33,33,33,0.5),16px 32px 0 #F2D204,17px 33px 0 rgba(33,33,33,0.5),24px 32px 0 #F2D204,25px 33px 0 rgba(33,33,33,0.2),0 40px 0 #F2D204,1px 41px 0 rgba(33,33,33,0.3),8px 40px 0 #F2D204,9px 41px 0 rgba(33,33,33,0.5),16px 40px 0 #F2D204,17px 41px 0 rgba(33,33,33,0.5),24px 40px 0 #F2D204,25px 41px 0 rgba(33,33,33,0.2),0 48px 0 #F2D204,1px 49px 0 rgba(33,33,33,0.3),8px 48px 0 #F2D204,9px 49px 0 rgba(33,33,33,0.5),16px 48px 0 #F2D204,17px 49px 0 rgba(33,33,33,0.5),24px 48px 0 #F2D204,25px 49px 0 rgba(33,33,33,0.2),0 56px 0 #F2D204,1px 57px 0 rgba(33,33,33,0.3),8px 56px 0 #F2D204,9px 57px 0 rgba(33,33,33,0.5),16px 56px 0 #F2D204,17px 57px 0 rgba(33,33,33,0.5),24px 56px 0 #F2D204,25px 57px 0 rgba(33,33,33,0.2),0 64px 0 #F2D204,1px 65px 0 rgba(33,33,33,0.3),8px 64px 0 #F2D204,9px 65px 0 rgba(33,33,33,0.5),16px 64px 0 #F2D204,17px 65px 0 rgba(33,33,33,0.5),24px 64px 0 #F2D204,25px 65px 0 rgba(33,33,33,0.2),0 72px 0 #F2D204,1px 73px 0 rgba(33,33,33,0.3),8px 72px 0 #F2D204,9px 73px 0 rgba(33,33,33,0.5),16px 72px 0 #F2D204,17px 73px 0 rgba(33,33,33,0.5),24px 72px 0 #F2D204,25px 73px 0 rgba(33,33,33,0.2),0 80px 0 #F2D204,1px 81px 0 rgba(33,33,33,0.3),8px 80px 0 #F2D204,9px 81px 0 rgba(33,33,33,0.5),16px 80px 0 #F2D204,17px 81px 0 rgba(33,33,33,0.5),24px 80px 0 #F2D204,25px 81px 0 rgba(33,33,33,0.2),0 88px 0 #F2D204,1px 89px 0 rgba(33,33,33,0.3),8px 88px 0 #F2D204,9px 89px 0 rgba(33,33,33,0.5),16px 88px 0 #F2D204,17px 89px 0 rgba(33,33,33,0.5),24px 88px 0 #F2D204,25px 89px 0 rgba(33,33,33,0.2);
position:absolute;
top:2px;
left:0;
display:block;
width:22%;
height:6%;
}再比如绘制一个虾：
.BBQ .shrimp {
border-radius:60%/30% 40% 10% 70%;
background-image:-webkit-radial-gradient(circle at center right,rgba(0,0,0,0) 67%,#cc4a04 68%,#ef6921 74%,#ef6921 85%,rgba(33,33,33,0.2) 86%,rgba(0,0,0,0) 90%);
background-image:radial-gradient(circle at center right,rgba(0,0,0,0) 67%,#cc4a04 68%,#ef6921 74%,#ef6921 85%,rgba(33,33,33,0.2) 86%,rgba(0,0,0,0) 90%);
position:absolute;
top:-35px;
left:-10px;
display:block;
width:86px;
height:70px;
z-index:1;
}
.BBQ .shrimp:before {
-ms-transform:rotate(24deg);
-webkit-transform:rotate(24deg);
transform:rotate(24deg);
border-radius:85% 85% 50% 50%/120% 120% 50% 50%;
box-shadow:1px -35px 0 -7px #EF6921,0 -36px 1px -7px rgba(33,33,33,0.2),5px -23px 0 -8px #EF6921,5px -23px 1px -7px rgba(33,33,33,0.2),0 -2px 0 0 rgba(222,222,222,0.3) inset,-2px 1px 2px rgba(33,33,33,0.2);
position:absolute;
top:-24px;
left:15px;
display:block;
width:18px;
height:45px;
background:#EF6921;
}
.BBQ .shrimp:after {
border-radius:50%;
background-image:-webkit-radial-gradient(circle at top center,#ef6921 35%,rgba(0,0,0,0) 36%),-webkit-radial-gradient(circle at center left,#ef6921 27%,#cc4a04 37%,rgba(0,0,0,0) 38%);
background-image:-webkit-radial-gradient(top center,circle,#ef6921 35%,rgba(0,0,0,0) 36%),-webkit-radial-gradient(circle at center left,#ef6921 27%,#cc4a04 37%,rgba(0,0,0,0) 38%);
background-image:radial-gradient(circle at top center,#ef6921 35%,rgba(0,0,0,0) 36%),radial-gradient(circle at center left,#ef6921 27%,#cc4a04 37%,rgba(0,0,0,0) 38%);
box-shadow:-13px -86px 0 -9px rgba(222,222,222,0.5),-14px -85px 0 -7px #212121;
position:absolute;
top:60px;
left:25px;
display:block;
width:22px;
height:22px;
}大家可以下载源码研究，也可以查看演示效果。
